Industrial X86 touch one machine

  • 7 inch touch all-in-one machine
  • 7 inch touch all-in-one machine
7 inch touch all-in-one machine7 inch touch all-in-one machine

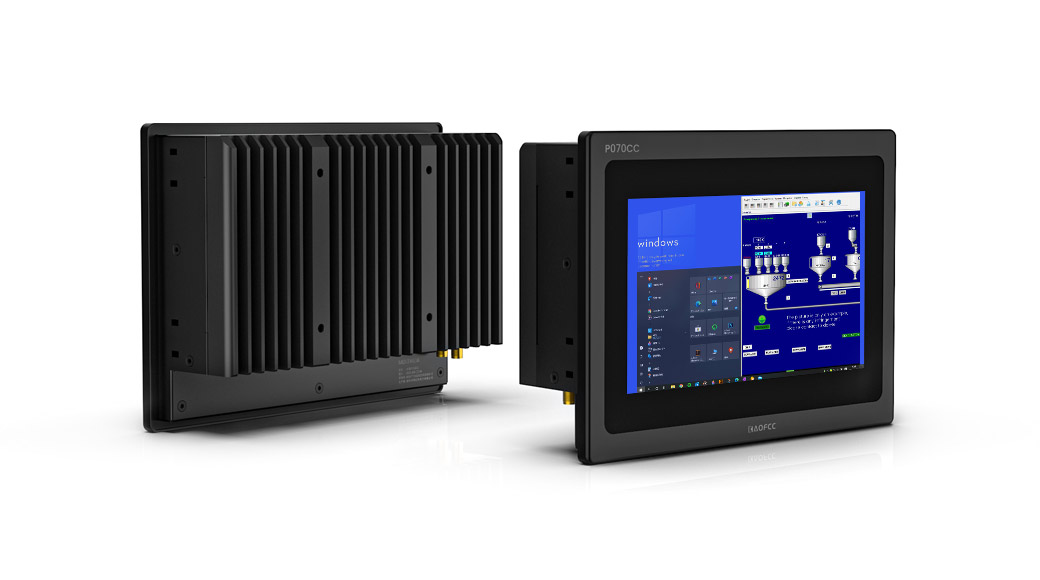

7 inch touch all-in-one machine

  • Model:HF-21-070CC 3855U
  • Resolution:1024*600
  • Brightness :300cd/㎡
  • Visible angle :IPS
  • Product description: Mingyike industrial-grade touch all-in-one computer, industrial-grade IP65 strong chassis power-on function, dustproof, anti-vibration, anti-interference, support 100*100mm wall-mounted/desktop, embed
  • INQUIRY

Display Pane

Brand

MEKT明亿科

Model

HF-21-070CC 3855U

Size/Proportion

7 inches 16:9

Resolution

1024*600

Brightness

300cd/㎡

Contrast

800:1

Display color

16.7m

Response time

2-5ms

Visible angle

IPS

Point distance(mm)

0.276(h)x0.276(v)

Draw quality

Progressive scan of 3d noise reduction and high definition signal

Touch Function

Touch screen

Capacitive touch screen (10 points)

Surface hardness

≥6h

Transmittance

90%

Positioning accuracy

less than 2mm

Click lifetime

> 60 million times

Touch medium

Touch pen and finger special for current sensing and capacitance

Right-click function

Click on a certain point and press for more than 3 seconds

Touch interface

USB

Support system

win7, win8, win10, android, linux and so on

Motherboard  Function

Mainboard

HAOFCC industrial motherboard

CPU

Intel celeron 3855u dual core dual thread

RAM

4GB

SSD

64GB (optional 32G\128G\500G\1T)

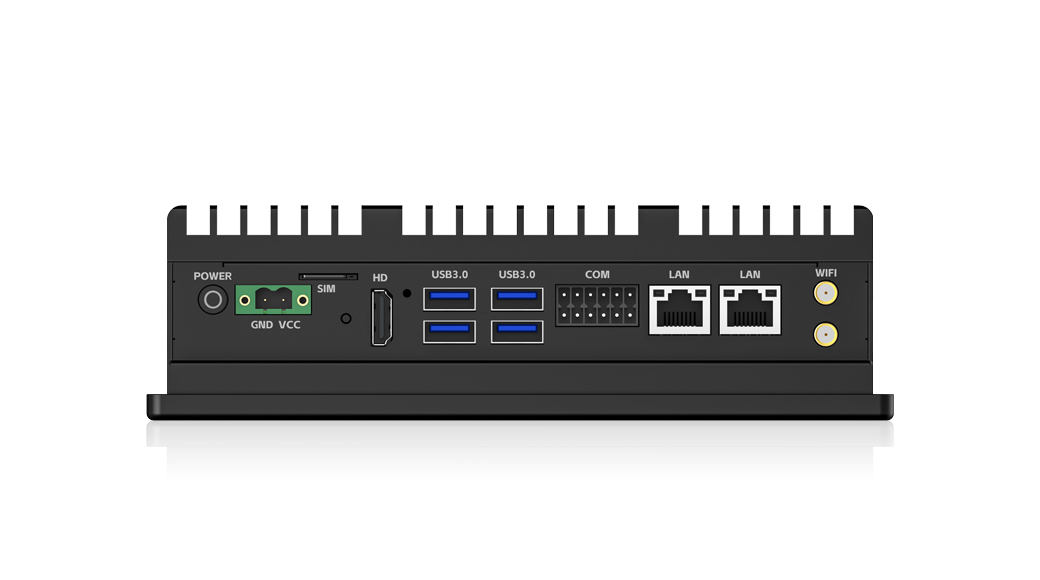

LAN

LAN*2  100/1000M adaptive

USB

USB3.0*4

COM

RS232*4

HDMI

HDMI*2

Wireless card

Wifi is not available as standard (optional)

Power

Power*1 (power-on and power-on function can be set)

DC

DC12-24V

Watch dog timer

0-255 seconds, providing watchdog routine

Power

≤20W

Work Environment

Operating Temperature/humidity

-10℃ to +60℃/ 0-80% relative humidity, no condensation

Storage Temperature/humidity

-15℃ to +65℃/ 0-90% relative humidity, no condensation

Product Service

After service

one-year warranty and lifelong maintenance

Customized service

OEM/ODM is available for material, appearance, dimensions,

wide temperature, outdoor highlight, wide voltage, etc.
